● PF test under AC 220V and full loading
● Input voltage:175-264Vac
● Output voltage:12V 24V
● Output power range:0~200W
● Efficiency:86%
● Certificates:CE. ROHS
● Warranty period:5 years
● Conversion efficiency 93%
● Crimp type wiring, flexible installation
● High power density, small size, high only 23mm, saving installation space.
● Conversion efficiency:93%
● Crimp type wiring, flexible installation;
● High power density, small size, high only 18mm,saving installation space
● 100% full load burn-in test
● Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
● Equipped with over temperature, over current protection, short circuit protection, UVP, OVP
● Widely used in LED lighting and IT equipment
● Compliance to worldwide safety regulation for led lightings.

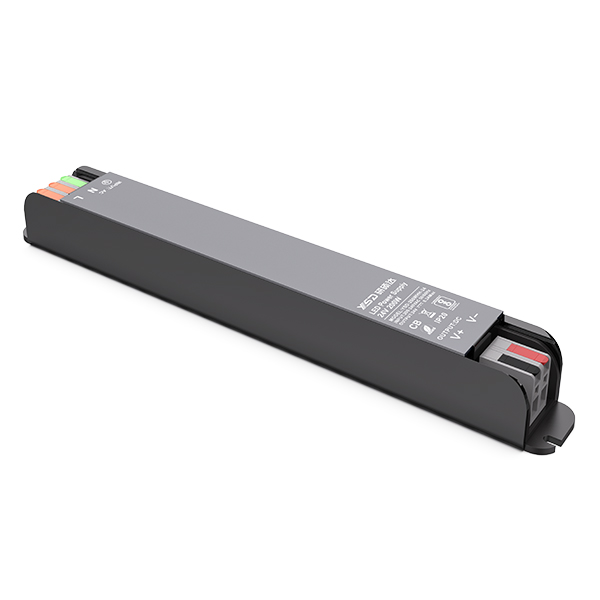

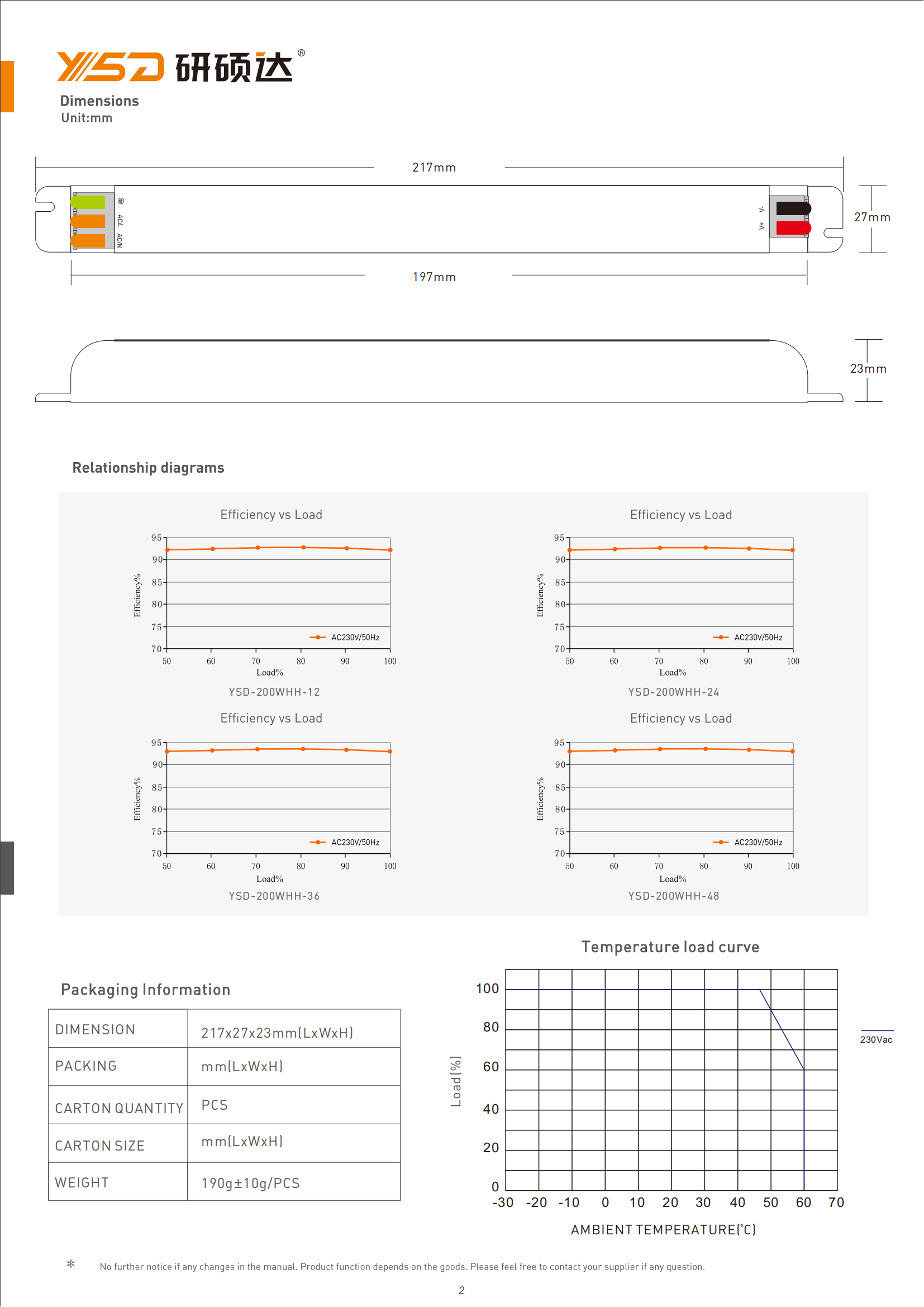

MODEL
|
led power supply
|
YSD-200WHH-12
|
YSD-200WHH-24
|
YSD-200WHH-36
|
YSD-200WHH-48
|
OUTPUT
|
Output voltage
|
12VDC
|
24VDC
|
36VDC
|
48VDC
|
Output voltage range
|
12VDC±0.5VDC
|
24VDC±0.5VDC
|
36VDC±0.5VDC
|
48VDC±0.5VDC
|
|
Output Current
|
Max 16.66A
|
Max 8.33A
|
Max 5.55A
|
Max 4.16A
|
|
Output power
|
Max 200W
|
||||
Output power range
|
0~200W
|
||||
Linear Regulation
|
±1%
|
||||
Load Regulation
|
±1%
|
||||
Start-up Time (Typ)
|
500ms/230Vac
|
||||
Hold Up Time(Typ)
|
12ms/230Vac
|
||||
INPUT
|
Input voltage
|
175-264Vac
|
|||
Frequency
|
50Hz
|
||||
Input current
|
1.5A/230VAC
|
||||
Power factor
|
PF>0.55
|
||||
No-load power consumption
|
<0.5W
|
||||
Efficiency (typ.)
|
92%
|
92%
|
93%
|
93%
|
|
Inrush current(typ.)
|
Cold start 65A at 230Vac
|
||||
Control surge capability
|
L,N:1KV L,N-PE:2KV
|
||||
Leakage current
|
Max.0.5mA
|
||||
ENVIRONMENT
|
Working temperature
|
ta: -30°C ~ 50°C tc: 80°C
|
|||
Working humidity
|
20 ~ 99%RH, condensing
|
||||
Storage temp., humidity
|
-40°C ~ 80°C, 10~95%RH
|
||||
PROTECTION
|
Overtemperature
|
Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore.
|
|||
Over load protection
|
Shut down the output when current load ≥110%~150%, auto recovers
|
||||
Short circuit protection
|
Protection type: It can be automatically restored after the fault is eliminated.
|
||||
SAFETY&EMC
|
Withstand voltage
|
I/P-O/P: 2000Vac
|
|||
Isolation resistance
|
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
|
||||
EMC Test Standards
|
EN55015:2013;EN61547:2009
EN61000-3-2:2014;EN61000-3-3:2013
|
||||
Reliability and Quality Control
|
Impact aging
|
100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C
|
|||
Component derating
|
Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value
|
||||
NOTE
|
1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature.
2.Ensure that the power supply is used under the rated parameters and environment
|
