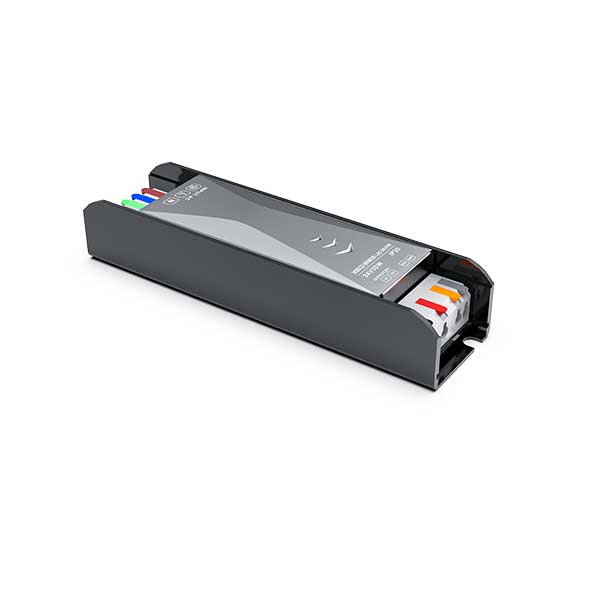

YSD CL Series 30W 5-in-1 Dimmable LED Driver

PF test under AC 115V and full loading

Input voltage:100-130Vac

Output voltage:12V,24V,36V,48V

Output power range:0~30W

Power factor:PF>0.55

Efficiency:85%-87%

Certificates:CE, CB, TUV, SAA, BIS, ROHS

Warranty period:3 years

Features:5-in-1 dimming, flicker-free IEEE 1789 compliant, 0.1% dimming depth, automatic protection recovery

Download



  • DESCRIPTION

 Shenzhen Yanshuoda power supply is adimmer light switch   company in China with over 15 years experience ; dimmer 60W power supply of CP series Triac dimmer + 0-10V dimmable  /dimmable light switch/dimming light bulbs, Soft and smooth, Flicker-free, Jitter free, A variety of dimming, simultaneous control, no interference; Widely used in light switch dimmer such as Europe,Australia and America(Lutron, Clipsal, Dynalite) series of dimmers; as well as philips hue dimming switch, led outdoor christmas lights, 12v dimmer switch power suuply. dimmer light switch power supply. Very good quality with excellent components like adjustable resistance





Specification

60W 12V/24V CV dimmable LED power supply YSD-60W/CP

60W 12V/24V CV dimmable LED power supply YSD-60W/CP
