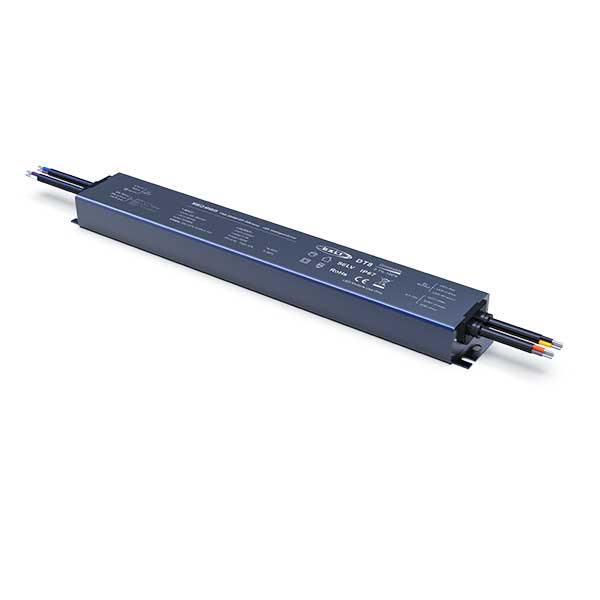

YSD DL Series 200W LED Intelligent Color Temperature Driver

PF test under AC 230V and full loading

Input voltage: 100-264Vac

Output voltage: 12V, 24V, 36V, 48V

Output power range: 0~200W

Power factor: PF>0.96

Efficiency: 93%-94%

Certificates: CE, CB, TUV, SAA, BIS, ROHS

Warranty period: (To be confirmed with supplier)

Features: Dual independent SELV output channels, intelligent dimming & CCT (2700K-6500K), flicker-free (IEEE 1789), constant power design, automatic protection recovery

Download

DESCRIPTION

Shenzhen Yanshuoda power supply is adimmer light switch company in China with over 15 years experience ; dimmer 60W power supply of CP series Triac dimmer + 0-10V dimmable /dimmable light switch/dimming light bulbs， Soft and smooth, Flicker-free, Jitter free, A variety of dimming, simultaneous control, no interference; Widely used in light switch dimmer such as Europe,Australia and America(Lutron, Clipsal, Dynalite) series of dimmers; as well as philips hue dimming switch, led outdoor christmas lights, 12v dimmer switch power suuply. dimmer light switch power supply. Very good quality with excellent components like adjustable resistance

Specification

60W 12V/24V CV dimmable LED power supply YSD-60W/CP
