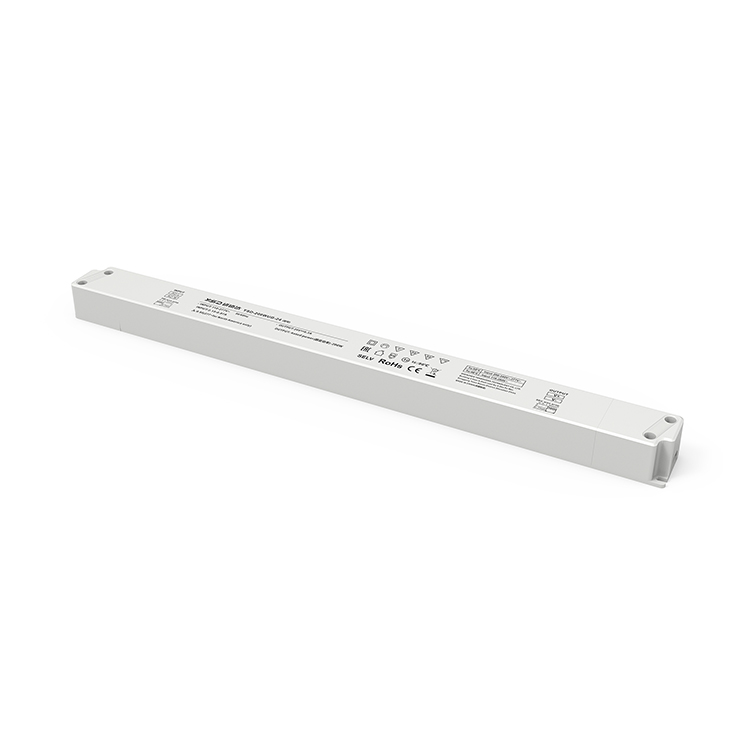

200W LED driver -ac dc power supply

● 200W power supply
● PF test under AC 220V and full loading
● Input voltage:100-277V
● Output voltage:12V/24V / Uninterruptible power supply
● Output power range:0~100W
● Power factor:PF>0.96/230Vac,at full load.PF>0.98/115Vac,at full load
● Certificates:CE,CB,BIS ROHS
● Warranty period:5 years
● Applicable to: LED light strips , LED module, LED point light source,  lighting engineering . Equipment 3D printer power supply .Engineering driver
● power supply is small, but fully functional, with high power, high PF, long working time, built in EMC, short circuit protection, over-voltage protection, overload protection,over- temperature protection


  • DESCRIPTION
YSD new series -G series of our IP20 ultra thin waterproof LED driver/ power supply 12V /24 dc power supply /200W driver ,with 5 years warranty  ;have CE ,ROHs ,BIS ,certificate;New design  for easier installation,with height  only have 22.5mm ,perfect choice for small space indoor or outdoor lighting project;input 100-277V ,PF>0.95 .could be used for indoor home decoration lighting , light strips,commercial light advertising board ,professional project power supply etc

200W LED driverLED Ultra-Thin Power Supply(CV)
● Universal AC input/full range(100-277VAC)
● Built in active PFC function
● Efficiency up to 93%, super thin and small size.
● Protections:short circuit/over load/over voltage/over temperature
● IP67 design for indoor or outdoor installation
● It can be used in dry ,wet and rainy environment.
● Cooling by free air, high reliability
● Up to 50000- hour life time
● Suitable for internal lights application for  Ⅰ/Ⅱ/Ⅲ.
● Widely used in LED lighting and IT equipment
● Compliance to worldwide safety regulation for led lightings.

Specification
MODEL  LED power supply YSD-200WHG-12 YSD-200WHG-24
OUTPUT Output voltage 12VDC  24VDC
Output voltage range 12VDC±0.5VDC 24VDC±0.5VDC
Output сurrent Max 16.7A Max 8.3A
Output power Max 200W
Output power range 0~200W
Ripple & Noise ≤250mV ≤250mV
Linear Regulation ±1%
Load Regulation ±1%
Start-up Time (Typ) 600ms/230VAC 800ms/115VAC
Hold Up Time (Typ) 50ms/230VAC 50ms/115VAC
INPUT Input voltage 175- 264Vac or 100-130Vac
Frequency 50/60Hz
Input сurrent 2.24A/230Vac or 0.86A/115Vac
Power factor PF>0.96/230Vac, at full load; PF>0.98/115Vac, at full load
No-load power consumption < 0.5W
Efficiency (typ.) 93% 95%
Inrush current (typ.) Cold start 55A at 230Vac
Control surge capability L,N:2KV L,N-PE:4KV
Leakage сurrent Max. 0.5mA
ENVIRONMENT Working temperature ta: -30°C~ 50°C tc: 80°C
Working humidity 20 ~ 99%RH, non- condensing
Storage temp., humidity  - 40°C ~ 80°C, 10~95%RH
PROTECTION Overtemperature Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore.
Over load protection Shut down the output when current load ≥110%~150%, auto recovers.
Short circuit protection Protection type: It can be automatically restored after the fault is eliminated.
SAFETY&EMC Withstand voltage I/P- O/P:3750Vac
Isolation resistance I/P- O/P: 100MΩ/500VDC/25°C/70%RH
Safety standards IEC/EN61347;IEC/EN60950;IP20
EMC Test Standards EN55015: 2013;EN61547: 2009; EN61000-3-2:2014; EN61000-3-3:2013
Reliabilityand Quality Control Impact aging 100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C
Component derating Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value
NOTE

1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature.

2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth.

3.Ensure that the power supply is used under the rated parameters and environment.
