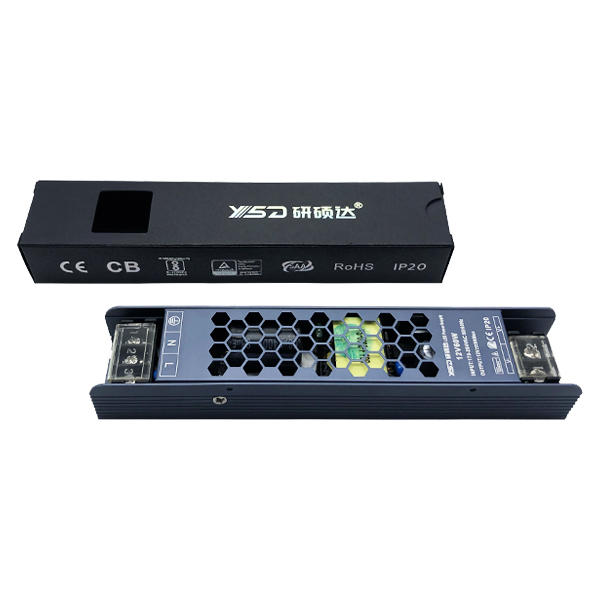

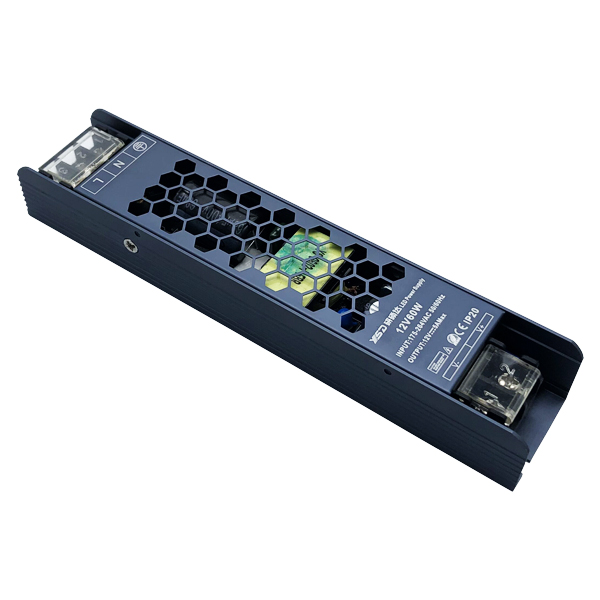

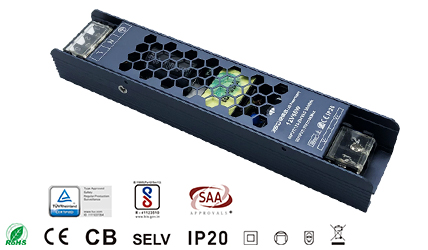

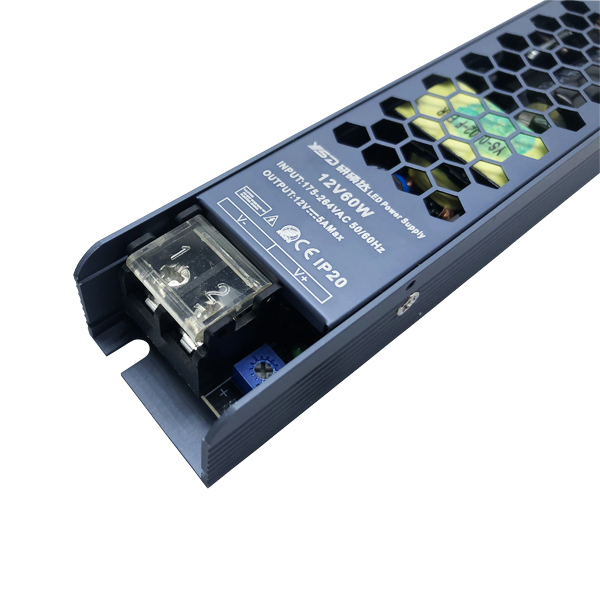

driver 60W LED power supply dc 12V-24V

12V DC  power supply / 24V DC  power supply / 60W power supply
● PF test under AC 220V and full loading
● Input voltage:175-264Vac or 100-130Vac
● Output voltage:12V,24V
● Output power range:0~60W
● Power factor:PF>0.6
● Efficiency:86%
● Certificates:CE,CB,TUV,SAA,BIS,ROHS
● Warranty period:3 years

● Download
  • DESCRIPTION
    Shenzhen Yanshuoda  LED power supply is a professional manufacturing led constant voltage drivers power company in China with over 15 years experience ; YSD economic series -C series  of our IP20 indoor lighting power 12V 60W, 24V  60W led ceiling lights driver .Indoor lighting system power supply  with 3 years warranty ;have CE ,ROHs ,CB,BIS,SAA certificate;Passed EMC ,with anti-interference,anti-radiation;perfect choice for indoor room lighting power supply ;input 170-264V/100-130V ,PF>0.6,could be used for indoor decoration lighting , light strips,outdoor led string lighting system,office lighting , 100W RGB light strips etc.Very good quality with excellent components like adjustable resistance

LED Switching Power Supply(C&V)
● Protections:short circuit/over load/over voltage/over temperature
● Design for indoor installations
● Cooling by free air, high reliability
● 100% full load burn-in test
● Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
● Widely used in LED lighting and IT equipment
● Compliance to worldwide safety regulation for led lightings.


Specification

MODEL  LED power supply YSD-60WHC-12 YSD-60WHC-24
OUTPUT Output voltage 12V DC  24V DC
Output voltage range 12VDC±0.5VDC 24VDC±0.5VDC
Output сurrent Max 5A Max 2.5A
Output power Max 60W
Output power range 0~60W
Ripple & Noise ≤120mV ≤240mV
Linear Regulation ±1%
Load Regulation ±1%
Start-up Time (Typ) 600ms/230VAC 800ms/115VAC
Hold Up Time(Typ) 100ms/230VAC 100ms/115VAC
INPUT Input voltage 175-264Vac or 100-130Vac
Frequency 50/60Hz
Input сurrent 0.52A/230Vac or 0.92A/115Vac
Power factor PF>0.6
No-load power consumption <3W
Efficiency (typ.) 86% 85%
Inrush current(typ.) Cold start 50A at 230Vac
Control surge capability L,N:2KV L,N-PE:4KV
Leakage сurrent Max. 0.5mA
ENVIRONMENT Working temperature ta: -30°C~ 50°C tc: 80°C
Working humidity 20 ~ 99%RH, non- condensing
Storage temp., humidity  -40°C ~ 80°C, 10~95%RH
PROTECTION Overtemperature Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore.
Over load protection Shut down the output when current load ≥110%~150%, auto recovers.
Short circuit protection Protection type: It can be automatically restored after the fault is eliminated.
SAFETY&EMC Withstand voltage I/P-O/P:3750Vac
Isolation resistance I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety standards IEC/EN61347;IEC/EN60950;IP20
EMC Test Standards EN55015: 2013;EN61547: 2009; EN61000-3-2:2014; EN61000-3-3:2013
Reliabilityand Quality Control Impact aging 100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C
Component derating Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value
NOTE

1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature.

2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth.

3.Ensure that the power supply is used under the rated parameters and environment.
