LED strip light power supply& ac dc power supply 60w

● PF test under AC 220V and full loading
● Input voltage:100-277V
● Output power range:0~60W
● Power factor:PF>0.96/230Vac,at full load.PF>0.98/115Vac,at full load
● Efficiency:93%
● Certificates:CE,,BIS,ROHS
●  Linear power supply is quick to install, and can be installed in small spaces to better solve the troublesome size of the installation. It is a wise decision to choose YSD LED power supply

  • DESCRIPTION

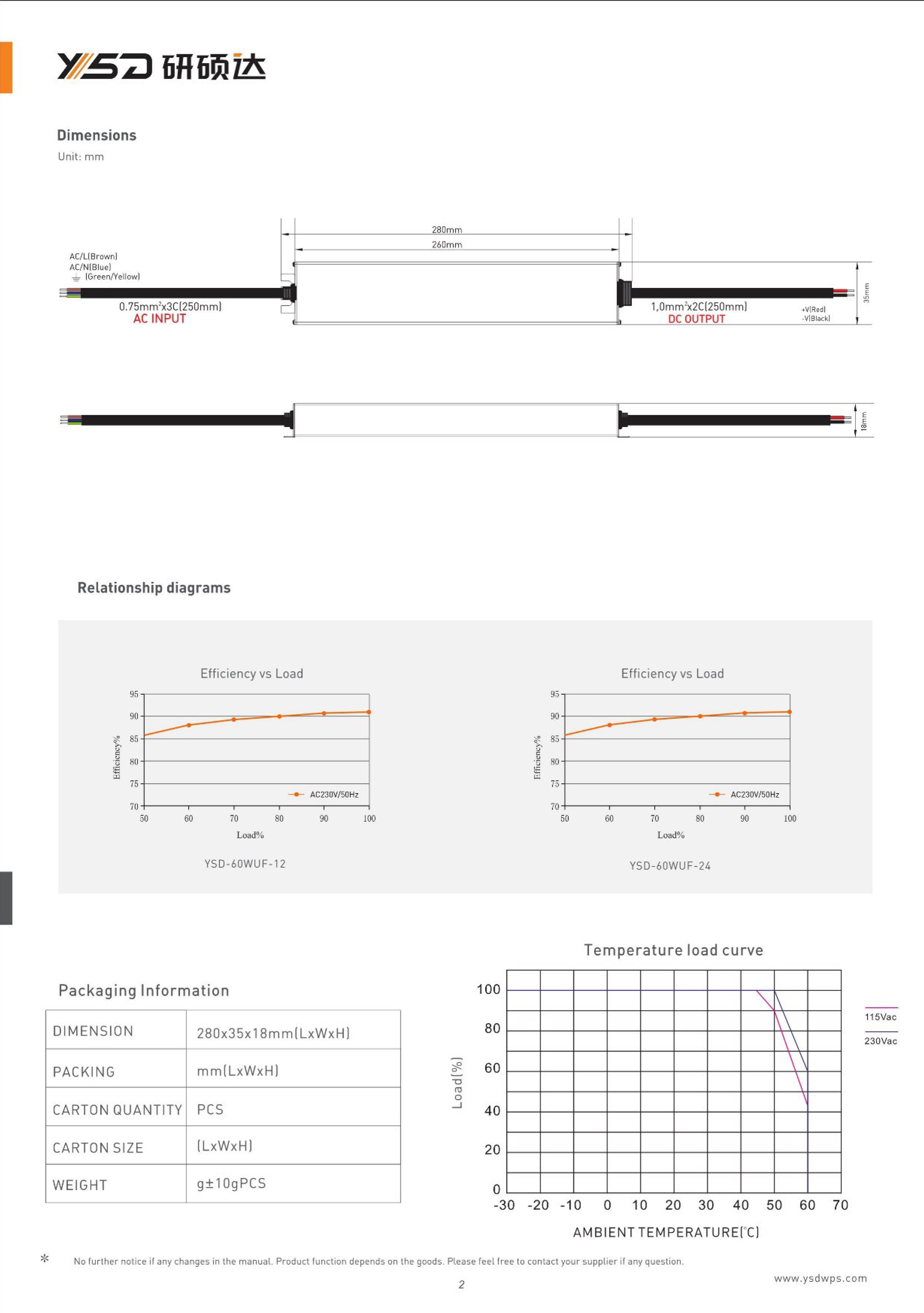

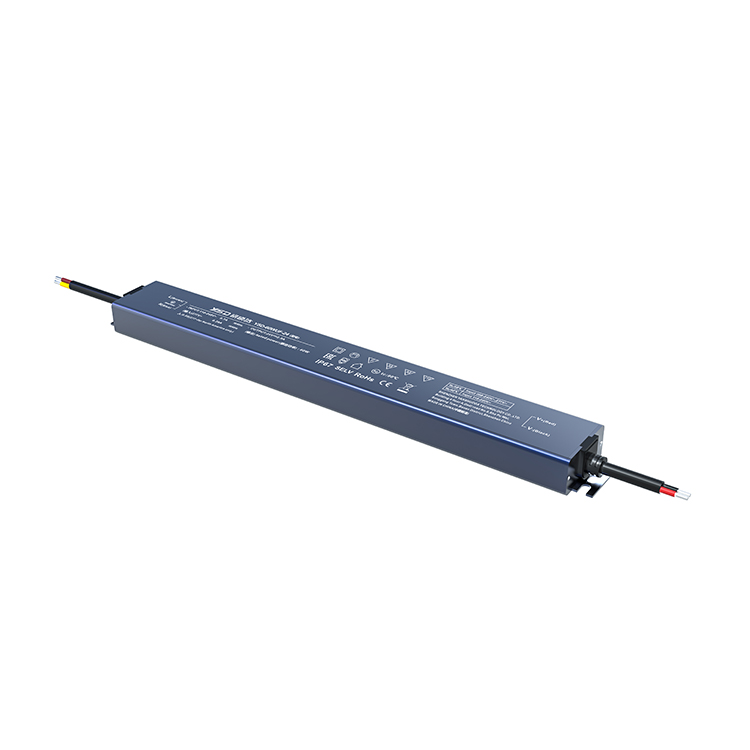

LED Ultra-Thin Strip Power Supply , long slim driverLED Ultra-Thin Strip Power Supply
● CV/CC Output Model
● Active PFC, PF>0.95,THD<15%
● Ultra-thin linear size, width only 30mm, suitable for ultra-small space installation
● Full protection insulation plastic shell, no ground wire, fast installatior
● Multiple protection circuit: short circuit, over current, over voltage, over temperature
● Widely used in LED panel, LED Strip, advertising sign light-box, home decoration lighting, office lighting, etc
● Passed EMC, anti-interference, anti radiation
● Comply with ERP instruction, standby power consumption < 0.5W
● Comply wiht EN61347
MODEL  LED power supply YSD-60WUF-12 YSD-60WUF-24 YSD-60WUF-36 YSD-60WUF-48
OUTPUT Output voltage 12VDC 24VDC 36VDC 48VDC
Output voltage range 12VDC±0.3VDC 24VDC±0.6VDC 36VDC±0.9VDC 48VDC±1.2VDC
Constant current range 8.0~12V 16.0~24V 24.0~36V 32.0~48V
Output current Max 5A Max 2.5A Max 1.7A Max1.25A
Output power Max 60W
Output power range 0~60W
Ripple & Noise ≤300mV ≤500mV ≤600mV ≤800mV
Linear Regulation ±5%
Load Regulation ±3%
Start-up Time (Typ) 500ms/230VAC 800ms/115VAC
Rise Time(Typ) 11ms/230VAC 11ms/115VAC
Hold Up Time(Typ) 19ms/230VAC 19ms/115VAC
INPUT Input voltage 110-277Vac
Frequency 50/60Hz
Input current 0.75A/110VAC , 0.33A/240VAC , 0.27A/277V
Power factor PF>0.95/230Vac, at full load;PF>0.98/115Vac, at full load
No-load power consumption <0.5W
THD ≤15% at 230Vac,at full load; ≤10% at 115Vac,at full load
Efficiency (typ.) 89% 89.5% 89.5% 89.5%
Inrush current(typ.) 50A/230VAC
Control surge capability L,N:1KV L,N-PE:2KV
Leakage current Max.0.5mA
ENVIRONMENT Working temperature ta: -30°C ~ 50°C tc: 80°C
Working humidity 20 ~ 95%RH, Non-condensing
Storage temp., humidity -40°C ~ 80°C, 10~95%RH
Vibration 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
PROTECTION

Overtemperature

Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore.
Over voltage protection Output voltage ≥120%-140%, turn off the output,after the abnormality is eliminated, re-energize to recover
Over load protection Load current ≥102%~110%, turn off the output, and automatically recover after the fault is eliminated.
Short circuit protection Protection type: It can be automatically restored after the fault is eliminated.
SAFETY&EMC Withstand voltage I/P-O/P: 3750Vac
Isolation resistance I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety standards IEC/EN61347;UL8750;GB19510
EMC emission EN55015:2013;FCC Part15B;EN61547:2009;EN61000-3-2:2014;EN61000-3-3:2013
EMC immunity EN61000-4-2,3,4,5,6,8,11 EN61547
Reliability and Quality Control Impact aging 100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C
Component derating Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value
NOTE

1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature.

2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth.

3.Ensure that the power supply is used under the rated parameters and environment.
