● PF test under AC 220V and full loading
● Input voltage:100-264V
● Output voltage:12V,24V
● Output power range:0~60W
● Power factor:PF>0.96/230Vac,at full load.PF>0.98/115Vac,at full load
● Efficiency:89%
● Certificates:CE,CB,TUV,SAA,BIS,ROHS
● Warranty period:5 years
 ● Applicable to: LED light strips , LED module, LED point light source, LED lighting engineering power supply. Equipment power supply 3D printer power supply .Engineering power supply.
● Download
YSD power supply is excellent company with over 15 years experience on manufacturing power supply ; YSD new series -E series of our IP20 high PF POWER SUPPLY 12V 24V 36V 48V 60W with 5 years warranty  ;have CE ,CB,ROHs ,BIS ,TUV,SAA certificate;perfect choice for indoor  lighting project;input 100-277V ,PF>0.95 .could be used for indoor home decoration lighting , light strips etc.Very good quality with excellent components inside .Without fan,very quiet without any buzz or humming noice
LED ultra-thin high PFC power supply 60W (CV)LED ultra-thin high PFC power supply 60W (CV)
● Universal AC input/full range(100-264VAC)
● Built in active PFC function
● Efficiency up to 89%, super thin and small size.
● Protections:short circuit/over load/over voltage/over temperature
● Can withstand 300VAC surge input for 5S
● 150% peak load capacity (100ms)
● Fanless design,Cooling by free air, high reliability
● Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
● Widely used in LED lighting and IT equipment
● Compliance to worldwide safety regulation for led lightings.
MODEL  led power supply YSD-60WUE-12 YSD-60WUE-24 YSD-60WUE-36 YSD-60WUE-48
OUTPUT Output voltage 12VDC power supply 24VDC power supply 36VDC power supply 48VDC power supply
Output voltage range 12VDC±0.3VDC 24VDC±0.6VDC 36VDC±0.9VDC 48VDC±1.2VDC
Output Current Max 5A Max 2.5A Max 1.7A Max 1.25A
Output power Max 60W
Output power range 0~60W
Ripple & Noise ≤350mV ≤500mV ≤700mV ≤700mV
Linear Regulation ±0.5%
Load Regulation ±0.5%
Start-up Time (Typ) 320ms/230VAC 500ms/115VAC
Rise Time(Typ) 11ms/230VAC 11ms/115VAC
Hold Up Time(Typ) 10ms/230VAC 10ms/115VAC
INPUT Input voltage 100-264Vac
Frequency 50/60Hz
Input current 0.7~0.28A
Power factor PF>0.95/230Vac, at full load; PF>0.98/115Vac, at full load
No-load power consumption <0.5W
THD ≤25% at 230Vac,at full load
Efficiency (typ.) 89% 90% 90.5% 91%
Inrush current(typ.) Cold start:60A/230V
Control surge capability L,N-PE:4KV
Leakage current Max.0.5mA
ENVIRONMENT Working temperature ta: -30°C ~ 50°C tc: 80°C
Working humidity 20 ~ 99%RH, condensing(Waterproof)
Storage temp., humidity -40°C ~ 80°C, 10~95%RH
Vibration 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.


Protection type:Shut down o/p voltage,re--power on to recover
Over voltage protection Output voltage ≥14-18V, turn off the output,after the abnormality is eliminated, re-energize to recover  Output voltage ≥29-35V, turn off the output,after the abnormality is eliminated, re-energize to recover
Over load protection Shut down the output when current load ≥110%~150%, auto recovers
Short circuit protection Protection type: It can be automatically restored after the fault is eliminated.
SAFETY&EMC Withstand voltage I/P-O/P: 3750Vac
Isolation resistance I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety standards IEC/EN61347;IEC/EN60950;IP67
EMC emission EN55015:2013;EN61547:2009/EN61000-3-2:2014;EN61000-3-3:2013
EMC immunity EN61000-4-2,3,4,5,6,8,11 EN61547

1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature.

2.Use 12 twisted-pair wires terminated with 0.1uF and 47uF parallel capacitors to measure ripple and noise under a 20MHz bandwidth.

3.Tolerance: including setting tolerance, wire gauge and wire gauge.

4.Ensure that the power supply is used under the rated parameters and environment

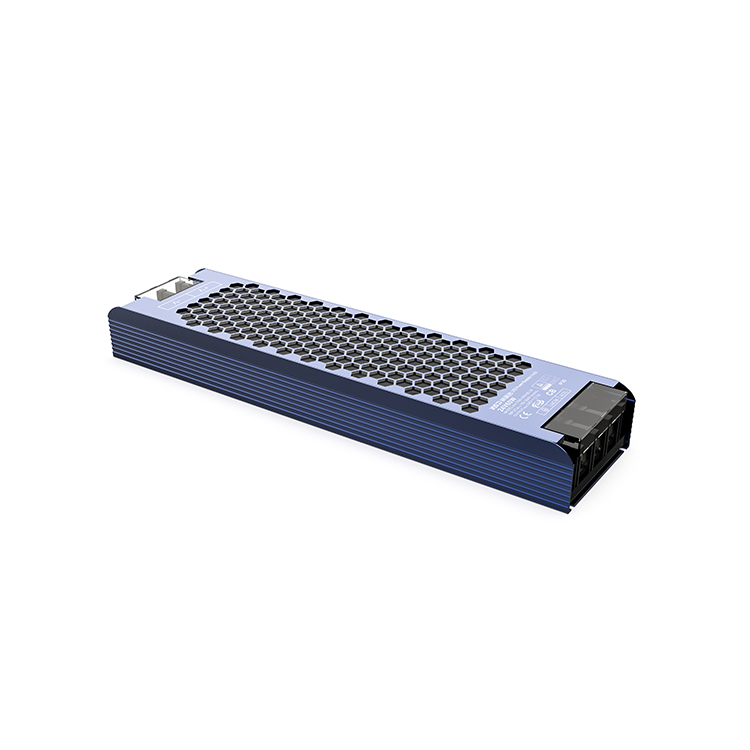

60W 12V/24V CV semi filled glue switch LED power supply YSD-60W/E
